These engines are built to order. Please contact us for delivery times.  This electrically heated stationary steam engine is supplied powered by 235-240 volts.This is to European specification and customers should check their countries voltage before ordering. The USA is 110 volts  . Converters can usually be purchased locally.     the most manufactured machine in the WlLESCO range. The 6.5 x 16.5 cm kettle has a volume of 500 cc. The steam pressure can be constantly checked using the pressure gauge and residual water remaining after the end of operation can be removed from the boiler with the drain cock.

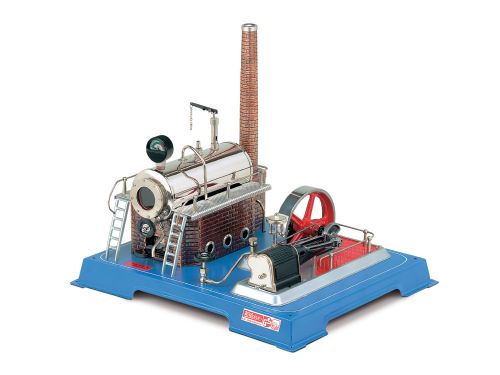

Our D20 is a model steam engine with a lot of power, which is ideally suited to operate larger model systems with it. You will find a large selection of suitable drive models here in the shop. Their really steaming chimney, whose steam outlet can be regulated via the steam valve, is also particularly fun.

Like all Wilesco steam engine models, the D20 is "Made in Germany" and purrs reliably even after many years with sufficient oiling and when the boiler level is observed.

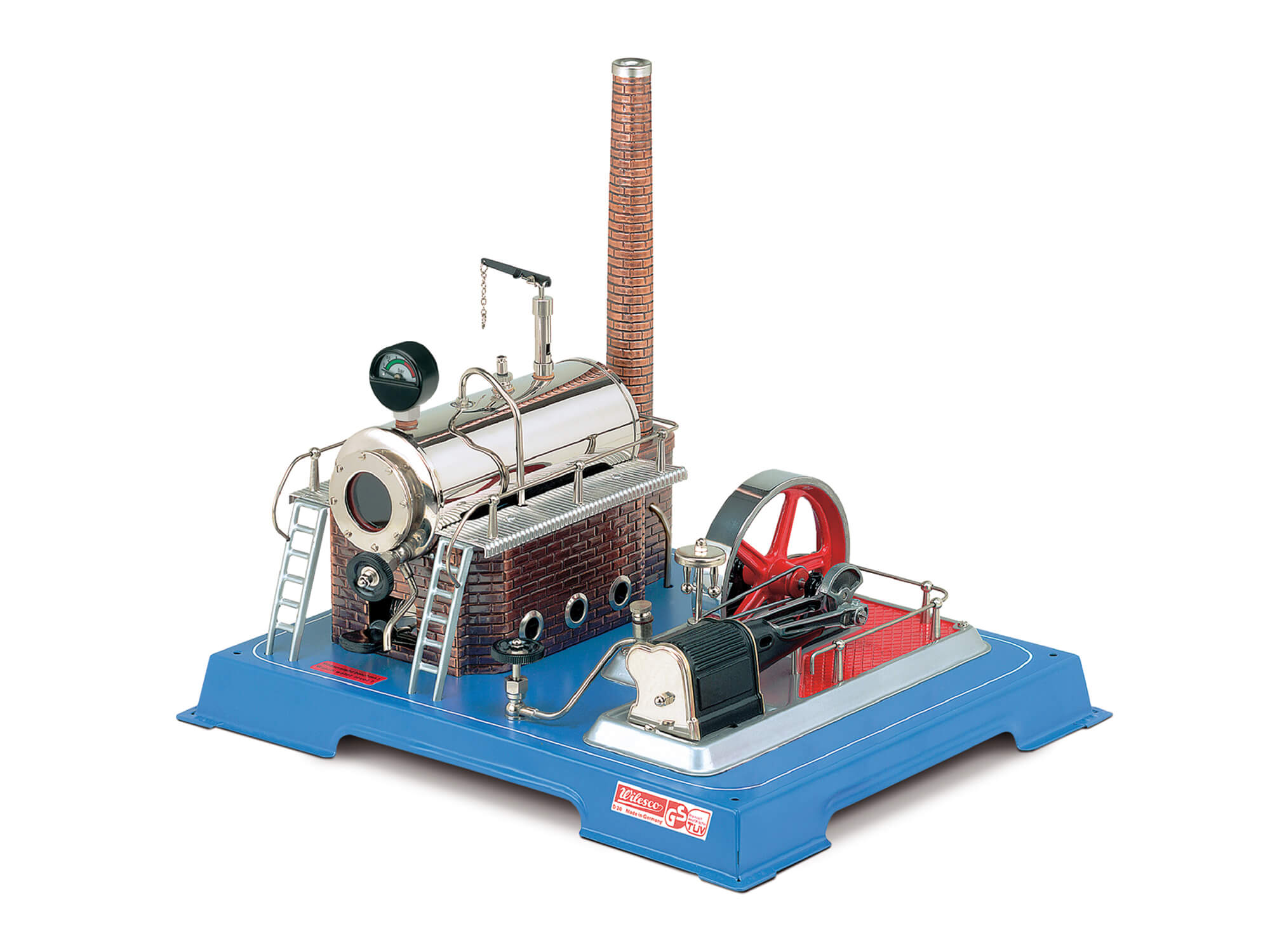

Steam engine 202 with electric heating

The model D20 is also available with electric heating as the D202.

Further details on the Wilesco steam engine model D20 and D202:

• Flywheel with 10 cm diameter that can be thrown in both directions of rotation
• Spring safety valve
• Steam whistle with chain hoist
• Vapor shut-off handwheel valve, centrifugal regulator and steam jet oiler.
• double-acting cylinder system with a diameter of 13 mm and a stroke of 16 mm
• Base size: 29 x 35 cm
• Height: 32 cm
• Net weight: 2.3 kg
• Gift packaging: 36 x 30 x 20 cm
• Boiler volume: 500 cc
• Heating D20: dry fuel (3 blocks of dry fuel included)

• Maße:

  Länge x Breite x Höhe	Kessel
  350mm x 290mm x 320mm	65mm500cm³165mm

  Schwungrad	Gewicht	Leistung
  100mm	2.82kg	20

  Downloads:

  • D20 Bedienungsanleitung
  • D202 Bedienungsanleitung
  • Ersatzteilliste
  Heating D202: electricity  https://www.wilesco.de/dampfmaschinen-wilesco/d202-station%C3%A4re-elektrisch-beheizt-wilesco-dampfmaschinen.mp4
